U POWER > UP Chassis Cab

UP Chassis Cab

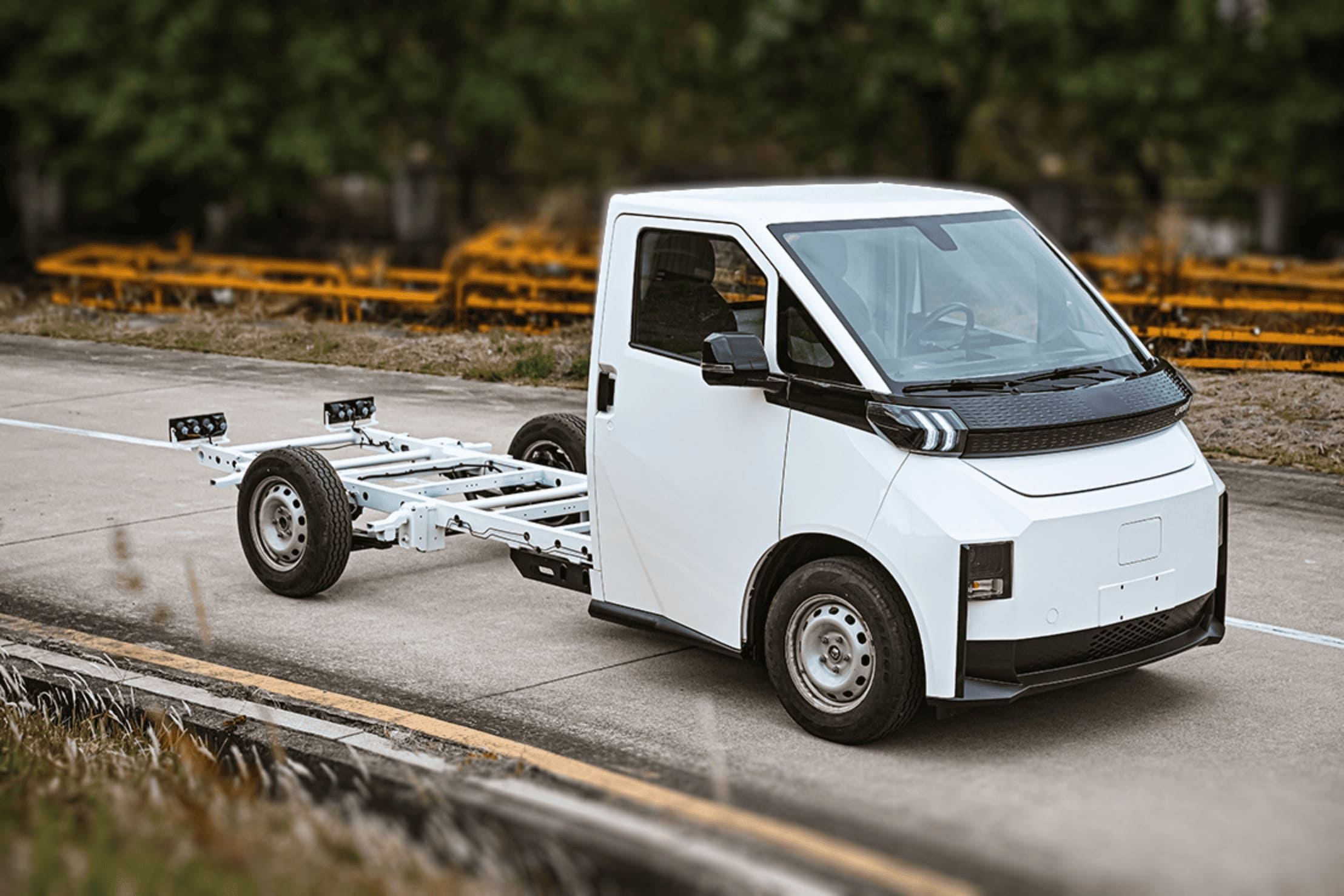

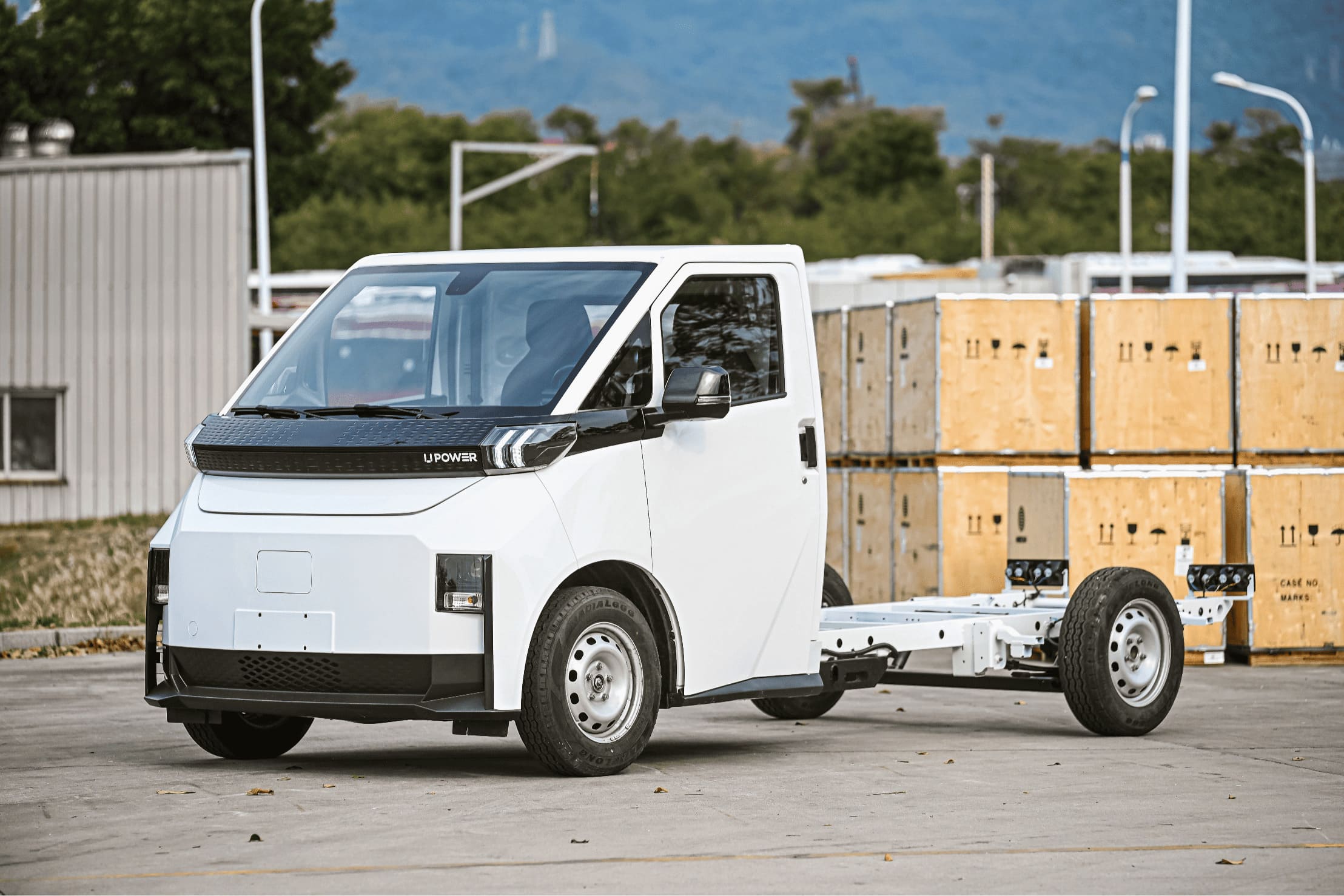

UP Chassis Cab allows for easy upfitting.
It meets rigorous European crash standards, ensuring safety and compliance,
while providing a smart, flexible solution to businesses seeking rapid electrification of their fleets.

Flexible Upfitting

Exceptional adaptability
Innovative low-floor platform with 490mm (19.3-inch) ground clearance, maximizing vertical space
Offers multiple chassis and wheelbase options
Configurable PTO for easy modifications
Versatile power output options
Dock height capable
Straight rails and frames
  • Exceptional adaptability
  • Innovative low-floor platform with 19.3-inch (490mm) ground clearance,
    maximizing vertical space
  • Offers multiple chassis and wheelbase options
  • Configurable PTO for easy modifications
  • Versatile power output options
  • Dock height capable
  • Straight rails and frames
Maximized Payload Capacity
Durable & Capable Performance in Heavy-Duty Scenarios
Lightweight materials combined with a reinforced structural design enable a curb weight of just 1,390kg (3,064 lbs) while supporting a full load of 3,500kg (7,716 lbs). Suited for high-demand applications.
Maximized Energy With Power Savings for Work-Ready Performance
Built on a low-energy chassis with smart power distribution for efficient upfits. Regenerative braking recovers 20% energy . UP VAN consumes 18.3kWh/100km (29.4 kWh/100 miles), with aerodynamics cutting it by another 5%–8%.
Enhanced Safety & Stability
Reliable Control in Every Drive
  • OneBox Brake-by-Wire (ESC + iBooster) – 30% faster response
  • Enhanced Braking Safety – 11.3% shorter braking distance (49.7 mph full-load test)
  • Low Center of Gravity – Increased stability and better control in high-speed turns and emergencies
  • N1 Crash-Test Certified Cabin – Meets passenger car safety standards for frontal and side impact protection

Enhanced Safety & Stability
Reliable Control in Every Drive

  • OneBox Brake-by-Wire (ESC + iBooster) – 30% faster response
  • Enhanced Braking Safety – 11.3% shorter braking distance (49.7 mph full-load test)
  • Low Center of Gravity – Increased stability and better control in high-speed turns and emergencies
  • N1 Crash-Test Certified Cabin – Meets passenger car safety standards for frontal and side impact protection

Smart Connectivity-Remote Diagnostic-Safe-Intelligent-Work Ready

  • Reversing Radar & Camera
  • OneBox (IBS+ESC)
  • Cloud-Based Powertrain Diagnostics
  • Vehicle Telematics
  • Available only on UP VAN models equipped with a T-BOX
Reversing Radar & Camera
OneBox (IBS+ESC)
Cloud-Based Powertrain Diagnostics
Vehicle Telematics
Available only on UP VAN models equipped with a T-BOX

Product Params


Short Wheelbase
Long Wheelbase
Overall Length
Bandwidth: 4693~5063 mm (185~199 in.)
Bandwidth: 5023~5393 mm (198~212 in.)
Overall Width
1900 mm (75 in.)
1900 mm (75 in.)
Overall Cab Height
1970 mm (78 in.)
1970 mm (78 in.)
Rear Frame Ground
Clearance
490 mm (19.3 in.)
490 mm (19.3 in.)
Wheelbase
3050 mm (120 in.)
3380 mm (133 in.)
Front Wheel Track
1674 mm (65.9 in.)
1674 mm (65.9 in.)
Rear Wheel Track
1670 mm (65.7 in.)
1670 mm (65.7 in.)
Turning Radius
6 m (236 in.)
6.5 m (256 in.)
GVWR
3500 kg (7716 lbs.)
3500 kg (7716 lbs.)
GAWR Front
1420kg (3131 lbs.)
1420kg (3131 lbs.)
GAWR Rear
2240kg (4938 lbs.)
2240kg (4938 lbs.)
Curb Vehicle
Weight (CVW)
1382 kg (3047 lbs.)
1390 kg (3064 lbs.) / 1482 kg (3267 lbs.)
Customized Weight
Capacity (Payload)
1988 kg (4539 lbs.)
1980 kg (4522 lbs.) / 1888 kg (4319 lbs.)
Peak Power
110 kW (148HP)
110 kW (148HP)
Max Motor Torque
220 N·m (162 ft-lb)
220 N·m (162 ft-lb)
Max Wheel Torque
2910 N·m (2146 ft-lb)
2910 N·m (2146 ft-lb)
Battery Capacity
42 kWh
42 kWh / 54 kWh
Battery Type
LFP
LFP
Brake System
OneBox ( including ESC )
OneBox ( including ESC )
Auxiliary Functions
AutoHold, Automatic Wiper
AutoHold, Automatic Wiper
Options
Payload Monitoring
Payload Monitoring
