UP VAN
High-Efficiency Electric Vehicle
UP VAN
High-Efficiency Electric Vehicle
A high-efficiency all-electric commercial vehicle,
purpose-built for demanding comercial customers.
purpose-built for demanding comercial customers.
With ultra-long range, energy-efficient design, and optimized cargo space,
it delivers exceptional operational efficiency—helping logistics companies
significantly reduce costs and boost productivity in urban delivery.
it delivers exceptional operational efficiency—helping logistics companies
significantly reduce costs and boost productivity in urban delivery.
A high-efficiency all-electric
commercial vehicle, purpose-built
for demanding comercial customers.
commercial vehicle, purpose-built
for demanding comercial customers.
With ultra-long range, energy-efficient design,
and optimized cargo space,it delivers exceptional
operational efficiency—helping logistics companies
significantly reduce costs and boost productivity in
urban delivery.
and optimized cargo space,it delivers exceptional
operational efficiency—helping logistics companies
significantly reduce costs and boost productivity in
urban delivery.

360° Virtual Vehicle Tour

360° Virtual Vehicle Tour



More Range Less Energy
With a lightweight design and a Industry leading drag coefficient of just 0.29 Cd,the UP VAN delivers 15% longer range with less energy draw from the battery pack.
Electric Consumption
(Combined Cycle WLTP)
(Combined Cycle WLTP)
18.3 kWh / 100 km
(29.4 kWh/100 miles)
(29.4 kWh/100 miles)
Pure Electric Range
(Combined Cycle WLTP)
(Combined Cycle WLTP)
284 km
(176 miles)
(176 miles)
Pure Electric Range
(Urban Cycle WLTP)
(Urban Cycle WLTP)
387 km
(240 miles)
(240 miles)
Electric Consumption
(Combined Cycle WLTP)
(Combined Cycle WLTP)
18.3 kWh / 100 km
(29.4 kWh/100 miles)
(29.4 kWh/100 miles)
Pure Electric Range
(Combined Cycle WLTP)
(Combined Cycle WLTP)
284 km
(176 miles)
(176 miles)
Pure Electric Range
( (Combined Cycle WLTP) WLTP )
( (Combined Cycle WLTP) WLTP )
387 km
(240 miles)
(240 miles)


Compact Outside Roomy Inside
Lightweight design with a load-to-weight ratio of 0.97 (38% improvement compared to similar models).
UP VAN offers 10% more cargo space with similar dimensions.
UP VAN offers 10% more cargo space with similar dimensions.
Lightweight design with a load-to-weight ratio of 0.97 (38% improvement compared to similar models).
UP VAN offers 10% more cargo space with similar dimensions.
UP VAN offers 10% more cargo space with similar dimensions.
Payload
>1620 kg
(>3,579 lbs)
(>3,579 lbs)
Cargo Volume
10 m³
(353.2 cu ft)
(353.2 cu ft)

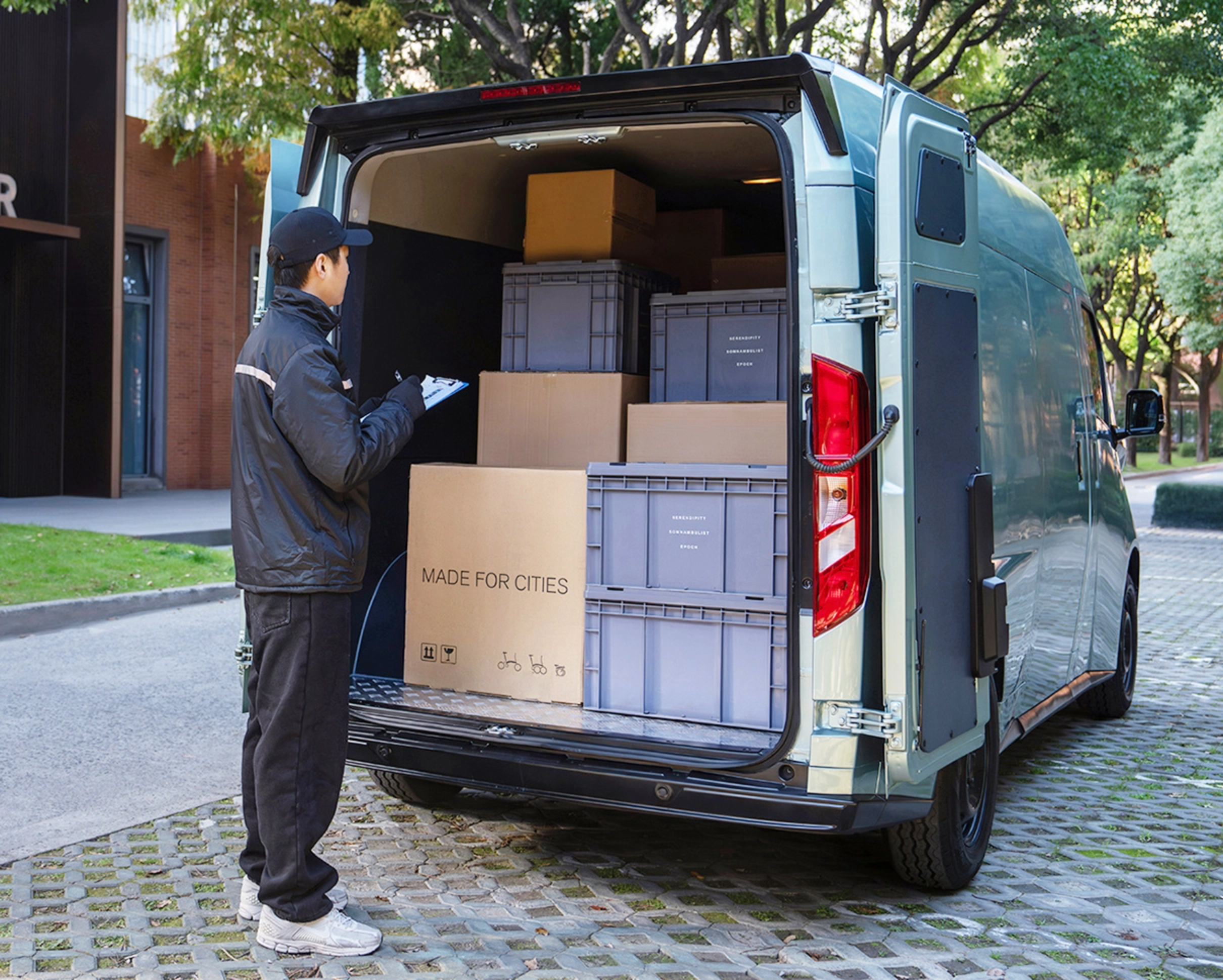

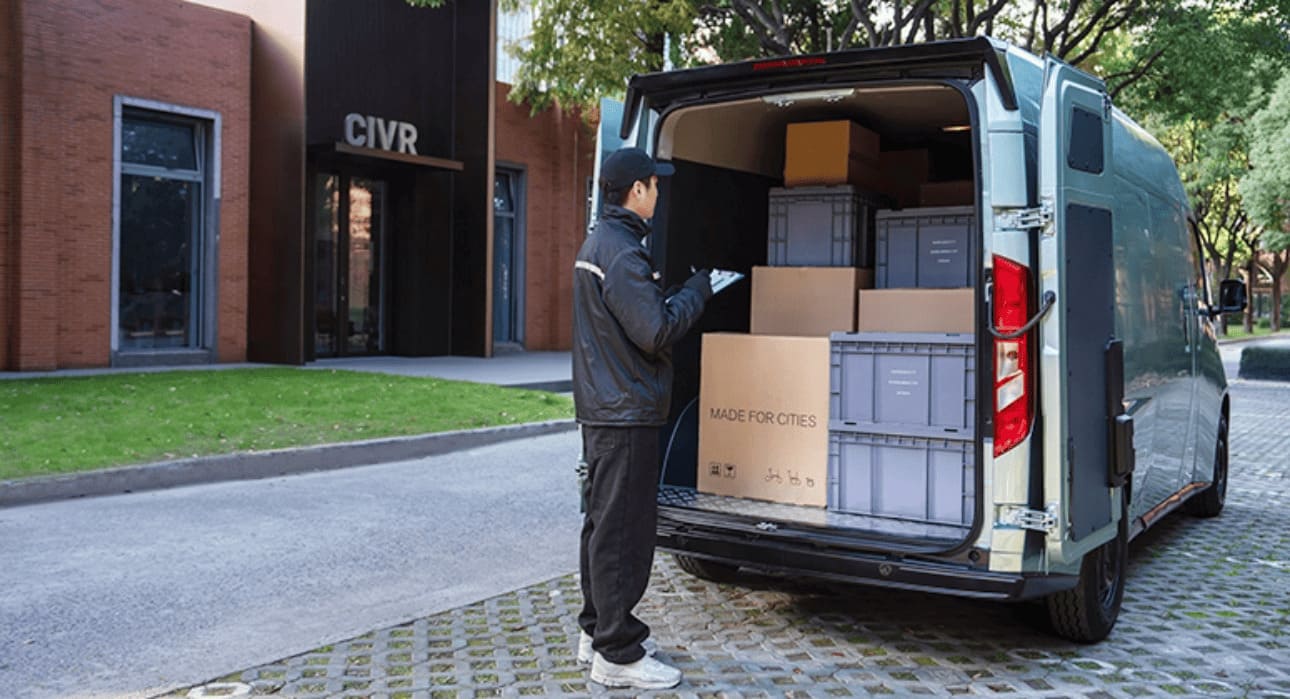

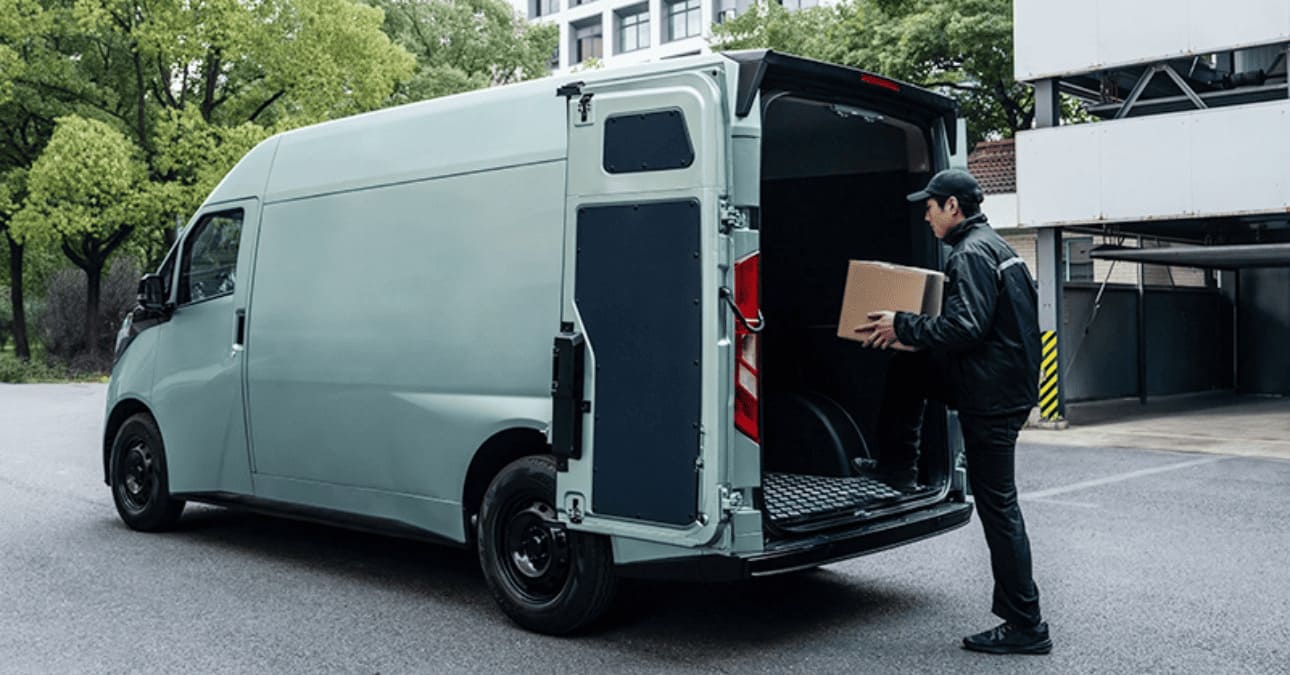

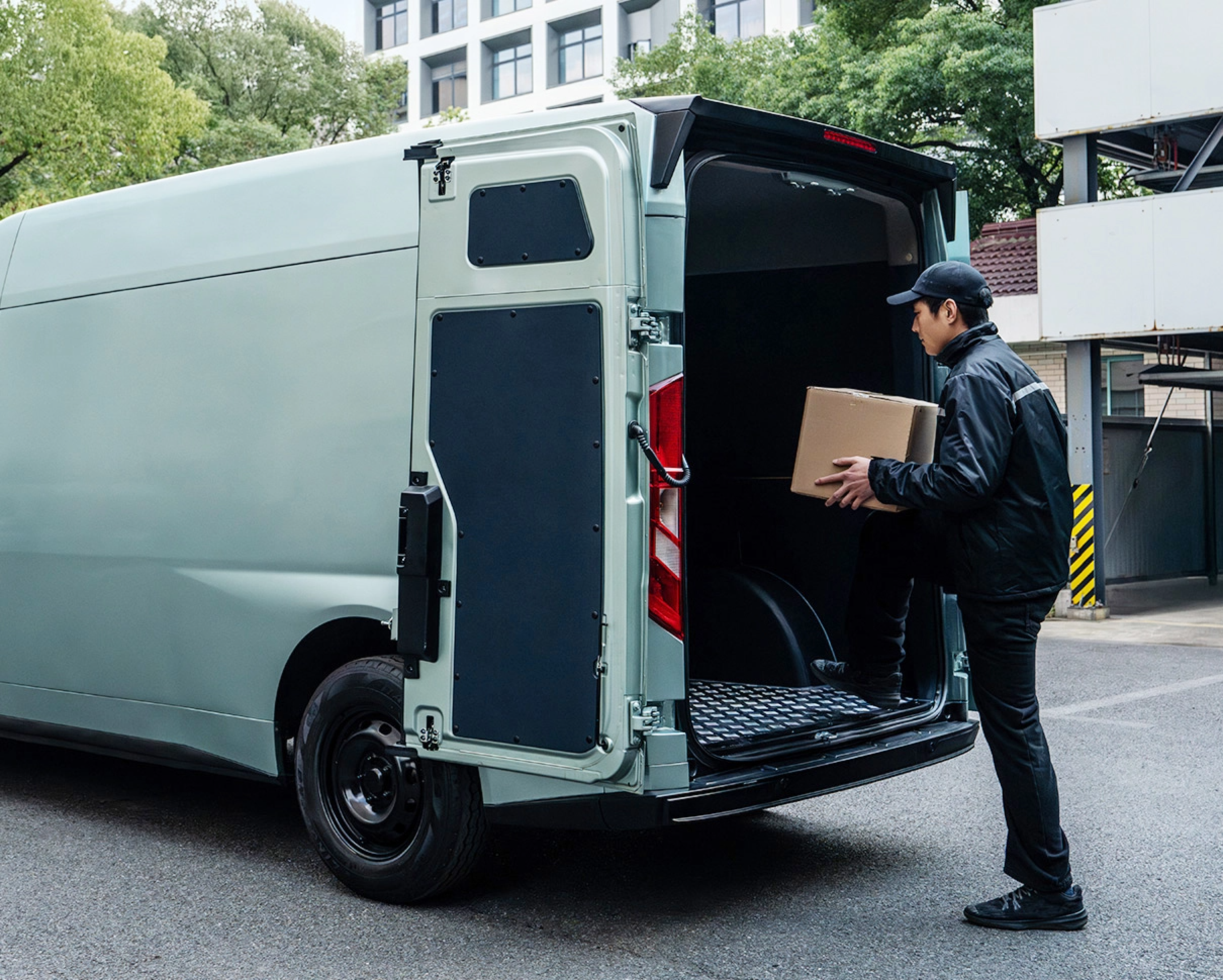

Effortlessly Load and Unload
The platform is developed from scratch, with a 20% lower floor height for easier loading and unloading.
Cargo Floor Height
496 mm (19.5 in)
Cargo lnterior Height
(without cargo trim)
(without cargo trim)
1800 mm (70.9 in)

Powerful Performance
Handles a 25% slope with ease, even fully loaded
Acceleration Time
0 to 50 km/h (31 mph)
0 to 50 km/h (31 mph)
4.9s
Top Speed
130 km/h (80.8 mph)


Compact and Agile
Compact design, tight turning radius make UP VAN ideal for narrow roads, easy navigation in city streets and alleys.
Turning Radius
6m (19.7 ft) Short-wheelbase
6.5m (21.3 ft) Long-wheelbase
6.5m (21.3 ft) Long-wheelbase


Smart Connectivity - Remote Diagnostic
Safe - Intelligent - Work Ready
- Reversing Radar & Camera
- Bluetooth
- OneBox (IBS+ESC)
- Three (3) Energy Recovery Modes
- Cloud-Based Powertrain Diagnostics
- Vehicle Telematics
- Real-Time Load Monitoring
- Exportable Power and PTO Capable

Comprehensive Durability Testing
UP VAN has undergone comprehensive full-vehicle and subsystem durability tests, simulating real-world intensity equivalent to 320,000 kilometers of usage over 10 years by 90% of users in the most demanding markets.
Dynamic Winter Testing
UP VAN was tested in extreme cold conditions below -20°C in Hailar, Inner Mongolia, evaluating performance on low-traction surfaces. The vehicle is equipped with the advanced OneBox brake-by-wire system, integrating ESC and over 20 enhanced functions, ensuring significantly improved handling and stability on icy roads.
High Temperature Testing
In the scorching heat of Turpan, Xinjiang, UP VAN completed 15 days of continuous operation—totaling 168 hours—under extreme conditions with ambient temperatures exceeding 45°C and surface temperatures over 70°C. These trials fully validated the reliability of the cooling, powertrain, and vehicle systems under thermal stress.

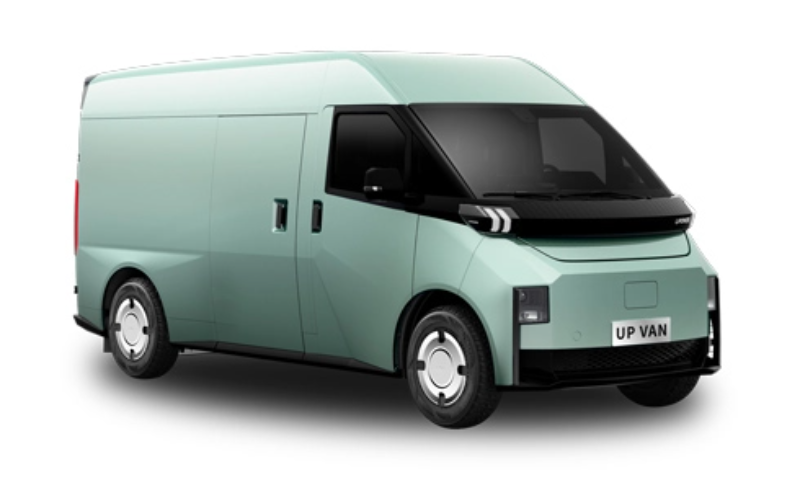

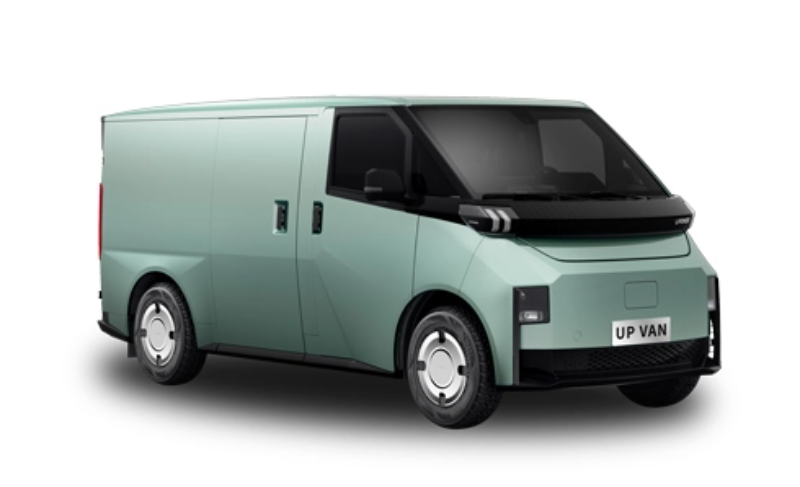

UP VAN Specifications

UP VAN C-L1H1

UP VAN C-L2H1

UP VAN C-L2H2

UP VAN C-L1H1

UP VAN C-L2H1

UP VAN C-L2H2
选择车型
(单次仅能选择两款比较)
UP VAN
C-L1H1-42
UP VAN
C-L2H1-42
UP VAN
C-L2H1-54
UP VAN
C-L2H2-42
UP VAN
C-L2H2-54
Basic Parameters
Length
4806 mm (189.2 in)
5136 mm (202.2 in)
5136 mm (202.2 in)
5136 mm (202.2 in)
5136 mm (202.2 in)
Width
1900 mm (74.8 in)
1900 mm (74.8 in)
1900 mm (74.8 in)
1900 mm (74.8 in)
1900 mm (74.8 in)
Height
1990 mm (78.3 in)
1900 mm (74.8 in)
1900 mm (74.8 in)
2270 mm (89.4 in)
2270 mm (89.4 in)
Wheel Base
3050 mm (120.1 in)
3380 mm (133.1 in)
3380 mm (133.1 in)
3380 mm (133.1 in)
3380 mm (133.1 in)
Cargo Volume
7.6 m³ (268.4 cu ft)
8.5 m³ (300.2 cu ft)
8.5 m³ (300.2 cu ft)
10 m³ (353.1 cu ft )
10 m³ (353.1 cu ft )
Payload
1400 kg (3,086 lbs)
1620 kg (3,571 lbs)
1530+ kg (3,373+ lbs)
1600 kg (3,527 lbs)
1510+ kg (3,329+ lbs)
GVWR
3170 kg (6,989 lbs)
3420 kg (7,540 lbs)
3420+ kg (7,540+ lbs)
3420 kg (7,540 lbs)
3420+ kg (7,540+ lbs)
Vehicle Performance
Drive Type
Front Wheel Drive of Motor
Front Wheel Drive of Motor
Front Wheel Drive of Motor
Front Wheel Drive of Motor
Front Wheel Drive of Motor
Battery Capacity
42kWh
42kWh
54kWh
42kWh
54kWh
Electric Range (Combined Cycle WLTP)
220 km (136.7 mi)
215 km (133.6 mi)
284 km (176.5 mi)
205 km (127.4 mi)
275 km (170.9 mi)
Electric Range (Urban Cycle WLTP)
334 km (207.5 mi)
314 km (195.1 mi)
387 km (240.5 mi)
301 km (187.0 mi)
383 km (238.0 mi)
Electricity Consumption (WLTP)
18.3 kWh/100km (29.5 kWh/100 mi)
18.8 kWh/100km (30.3 kWh/100 mi)
18.4 kWh/100km (29.6 kWh/100 mi)
19.0 kWh/100km (30.6 kWh/100 mi)
18.7 kWh/100km (30.1 kWh/100 mi)
Max Speed
130 km/h (80.8 mph)
130 km/h (80.8 mph)
130 km/h (80.8 mph)
130 km/h (80.8 mph)
130 km/h (80.8 mph)
Peak Power
110 kW (148 hp)
110 kW (148 hp)
110 kW (148 hp)
110 kW (148 hp)
110 kW (148 hp)
Max Motor Torque
220 N·m (162 ft-lb)
220 N·m (162 ft-lb)
220 N·m (162 ft-lb)
220 N·m (162 ft-lb)
220 N·m (162 ft-lb)
Max Wheel Torque
2910 N·m (2146 ft-lb)
2910 N·m (2146 ft-lb)
2910 N·m (2146 ft-lb)
2910 N·m (2146 ft-lb)
2910 N·m (2146 ft-lb)
Driving Mode (Empty Mode / Standard Mode / Heavy Mode)
S
S
S
S
S
Energy Management
Battery Type
LFP
LFP
LFP
LFP
LFP
Battery Thermal Management Mode
Battery Heating Device
Battery Heating Device
Battery Heating Device
Battery Heating Device
Battery Heating Device
Battery Cooling Type
Natural Cooling
Natural Cooling
Natural Cooling
Natural Cooling
Natural Cooling
DC Charge + AC Charge
S
S
S
S
S
DC Fast Charging Time (SOC: 30% → 80%)
0.5h
0.5h
0.5h
0.5h
0.5h
Charging Standard (AC + DC)
GB/T CCS2
GB/T CCS2
GB/T CCS2
GB/T CCS2
GB/T CCS2
Energy Recovery Modes (3 Levels)
S
S
S
S
S
Main Specification
Front Suspension
Macpherson Independent Suspension
Macpherson Independent Suspension
Macpherson Independent Suspension
Macpherson Independent Suspension
Macpherson Independent Suspension
Rear Suspension
In-Independence Suspension(3 Spring)
In-Independence Suspension(3 Spring)
In-Independence Suspension(3 Spring)
In-Independence Suspension(3 Spring)
In-Independence Suspension(3 Spring)
Steering Column
Collapsible
Collapsible
Collapsible
Collapsible
Collapsible
Steering Type
Electric Power Steering
Electric Power Steering
Electric Power Steering
Electric Power Steering
Electric Power Steering
Brake System
OneBox(IBS+ESP)
OneBox(IBS+ESP)
OneBox(IBS+ESP)
OneBox(IBS+ESP)
OneBox(IBS+ESP)
Parking Brake
EPB+Autohold
EPB+Autohold
EPB+Autohold
EPB+Autohold
EPB+Autohold
Tire
195/75 R16LT
195/75 R16LT
195/75 R16LT
195/75 R16LT
195/75 R16LT
Driver Air Bag
S
S
S
S
S
Passenger Seat Air Bag
S
S
S
S
S
Safety Belt Buckle Reminder
Driver & Passenger
Driver & Passenger
Driver & Passenger
Driver & Passenger
Driver & Passenger
Collision Power-Off Protection
S
S
S
S
S
Low Speed Pedestrian Warning
S
S
S
S
S
Reverse Image
S
S
S
S
S
F/R Proximity Sensor
F“-”/R “S”
F“-”/R “S”
F“-”/R “S”
F“-”/R “S”
F“-”/R “S”
Tire Pressure Monitoring System
S
S
S
S
S
ESP
S
S
S
S
S
Anti Theft System
S
S
S
S
S
Automatic Sensing Headlamp
S
S
S
S
S
Headlight Delay Off
S
S
S
S
S
Daytime Running Lamp
LED
LED
LED
LED
LED
Cargo Area Ceiling Light
LED
LED
LED
LED
LED
High Mounted Brake Lamp
LED
LED
LED
LED
LED
Exterior Color
Three colors Options
Three colors Options
Three colors Options
Three colors Options
Three colors Options
Outside Rearview Mirror Type
Electric Adjustment
Electric Adjustment
Electric Adjustment
Electric Adjustment
Electric Adjustment
Non-Folding Mechanical Key + NFC
S
S
S
S
S
Side Door Form
Right outer swing door
Right outer swing door
Right outer swing door
Right outer swing door
Right outer swing door
Tailgate Type
Rear double door
Rear double door
Rear double door
Rear double door
Rear double door
Maximum Opening Angle of Tailgate
270°
270°
270°
270°
270°
Front Door Window
Drive Side Power Window(One Click Down)
Drive Side Power Window(One Click Down)
Drive Side Power Window(One Click Down)
Drive Side Power Window(One Click Down)
Drive Side Power Window(One Click Down)
Front Wiper
Automatic Front Wiper (No Frame)
Automatic Front Wiper (No Frame)
Automatic Front Wiper (No Frame)
Automatic Front Wiper (No Frame)
Automatic Front Wiper (No Frame)
Keyless Start
S
S
S
S
S
Electronic Gear Shif
S
S
S
S
S
Gear Shift Lever
Column Shifter(P/R/N/D)
Column Shifter(P/R/N/D)
Column Shifter(P/R/N/D)
Column Shifter(P/R/N/D)
Column Shifter(P/R/N/D)
12 V Power Outlet(One)
S
S
S
S
S
3 USB (Charging Function)
S
S
S
S
S
12V Low-Voltage Lead-Acid Battery
S
S
S
S
S
Manual Front Cold & Warm A/C
S
S
S
S
S
Speaker
S
S
S
S
S
Number of Seats
2 Seats
2 Seats
2 Seats
2 Seats
2 Seats
Driver Seat
4-Direct Adjustable Subdriver Seat-Manual
4-Direct Adjustable Subdriver Seat-Manual
4-Direct Adjustable Subdriver Seat-Manual
4-Direct Adjustable Subdriver Seat-Manual
4-Direct Adjustable Subdriver Seat-Manual
Passenger seat
Single Seat Manual 4-Way Adjustment
Single Seat Manual 4-Way Adjustment
Single Seat Manual 4-Way Adjustment
Single Seat Manual 4-Way Adjustment
Single Seat Manual 4-Way Adjustment
12.3-Inch Screen
S
S
S
S
S
Mobile Phone Projection (iOS+Android)
S
S
S
S
S
Bluetooth Phone and Music
S
S
S
S
S
USB External Audio Source Interface
S
S
S
S
S
Download User Manual
UP VAN
- -

UP VAN Product Brochure
- -
- -
- - U POWER Product Brochure
- - UP VAN Product Brochure
- - UP Chassis Cab & Chassis Product Brochure

UP VAN User Manual
- -
- -
- - Warranty & Maintenance
- - UP VAN User Manual
- - UP Chassis Cab Function and Upfitting Guide

UP VAN Car Connectivity App
- -



Please leave your contact information, and we’ll send the document to your email shortly.
